Capacity: 1.6 Ton
Voltage: 24 V
Load Center: 600 mm
| Heading | Description |
|---|---|

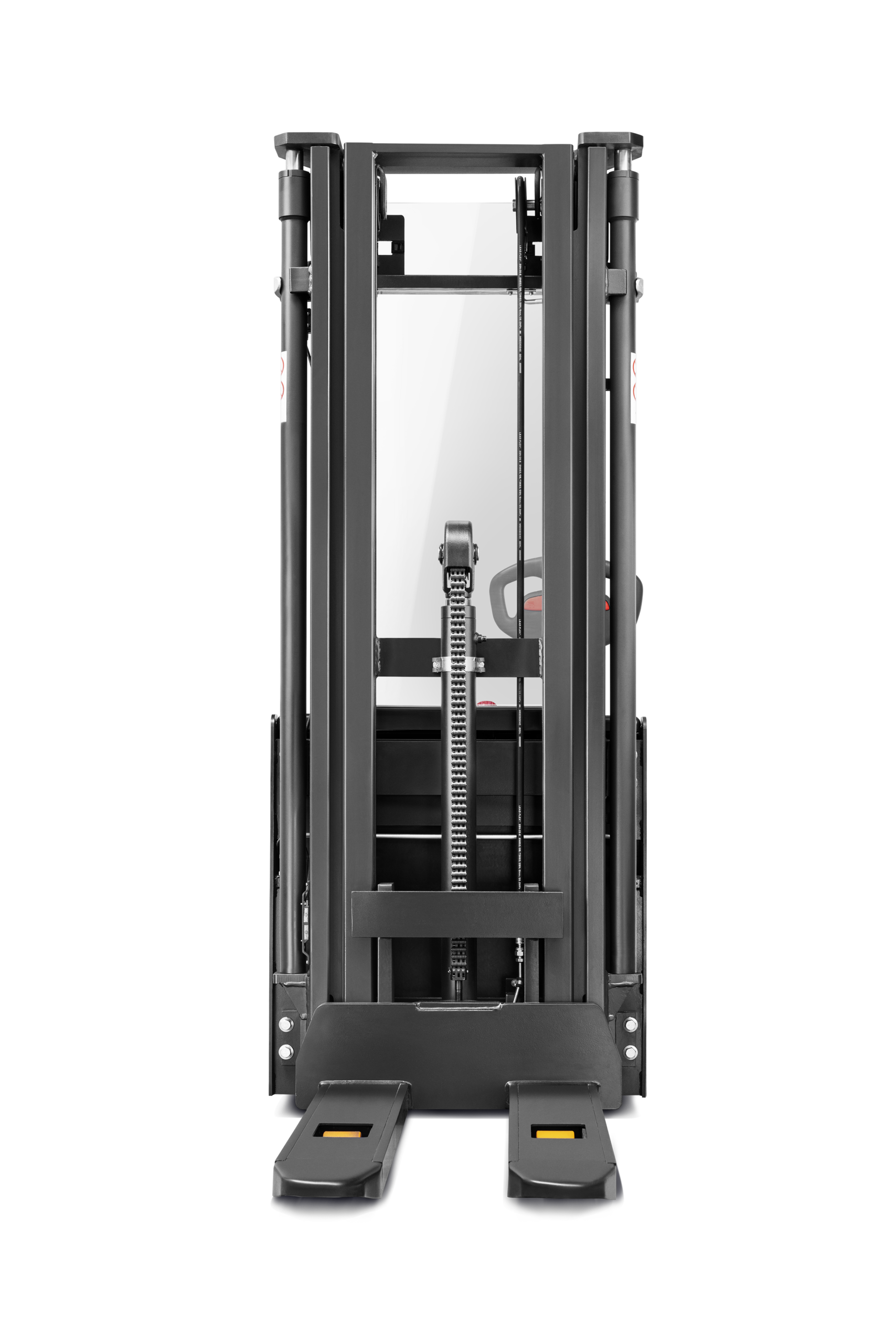

| Overview | The Bobcat BSL16N-7 is a pedestrian (walk-behind) electric stacker rated at 1,600 kg at a 600 mm load centre, from Bobcat’s entry-level BSL12/16N-7 range. It runs on a 24 V system and, depending on mast, lifts from 2,830 mm up to 5,430 mm. Travel speed is 5.7 km/h loaded and 6.0 km/h unloaded, with 1,150 mm forks and a 1,510 mm turning radius that keeps it manoeuvrable between racks. It suits shops, stores and light warehouses that need to put pallets onto racking without a counterbalance forklift. SDEC can help select the mast height and battery option and support the stacker with parts and service in Saudi Arabia. |
| Features | Description |
|---|---|
| Equipment Type | Electric pedestrian (walk-behind) stacker |
| Rated Capacity | 1,600 kg |
| Load Centre | 600 mm |
| Battery Voltage | 24 V |
| Lifting Height (range) | 2,830–5,430 mm |
| Travel Speed (loaded / unloaded) | 5.7 / 6.0 km/h |
| Forks (s / e / l) | 60 / 180 / 1,150 mm |
| Turning Radius (Wa) | 1,510 mm |
| Lift Motor | 3.2 kW |
