Capacity: 1.2 Ton
Voltage: 24 V
Load Center: 600 mm
| Heading | Description |
|---|---|

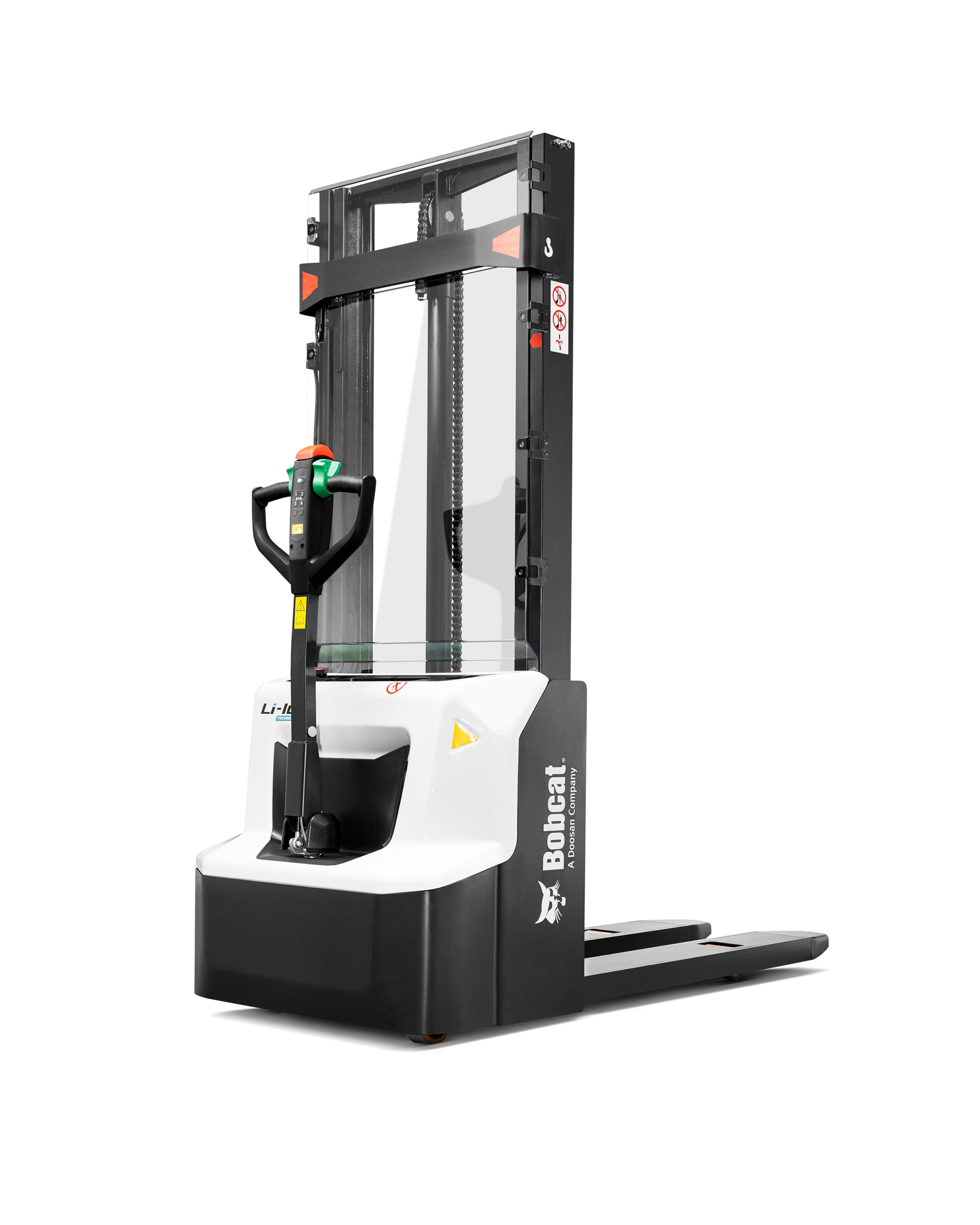

| Overview | The Bobcat LSM12N-7 is an entry-level pedestrian electric stacker rated at 1,200 kg at a 600 mm load centre. It runs on a 24 V lithium-ion (LiFePO4) battery with a built-in charger and lifts from 1,514 mm up to 3,514 mm depending on mast. Travel speed is 4.5 km/h loaded and 4.7 km/h unloaded, with 1,150 mm forks and a tight 1,350 mm turning radius. At 585 kg, it is a straightforward way to lift pallets onto low and medium racking in retail stores, workshops and small warehouses. SDEC can supply the LSM12N with a quotation, parts and service support in Saudi Arabia. |
| Features | Description |
|---|---|
| Equipment Type | Electric pedestrian stacker |
| Rated Capacity | 1,200 kg |
| Load Centre | 600 mm |
| Battery | 24 V lithium-ion (LiFePO4), built-in 24 V / 25 A charger |
| Lifting Height (range) | 1,514–3,514 mm |
| Travel Speed (loaded / unloaded) | 4.5 / 4.7 km/h |
| Forks (s / e / l) | 60 / 180 / 1,150 mm |
| Turning Radius (Wa) | 1,350 mm |
| Service Weight | 585 kg |
