Capacity: 1.6 Ton
Voltage: 24 V
Load Center: 600 mm
| Heading | Description |
|---|---|

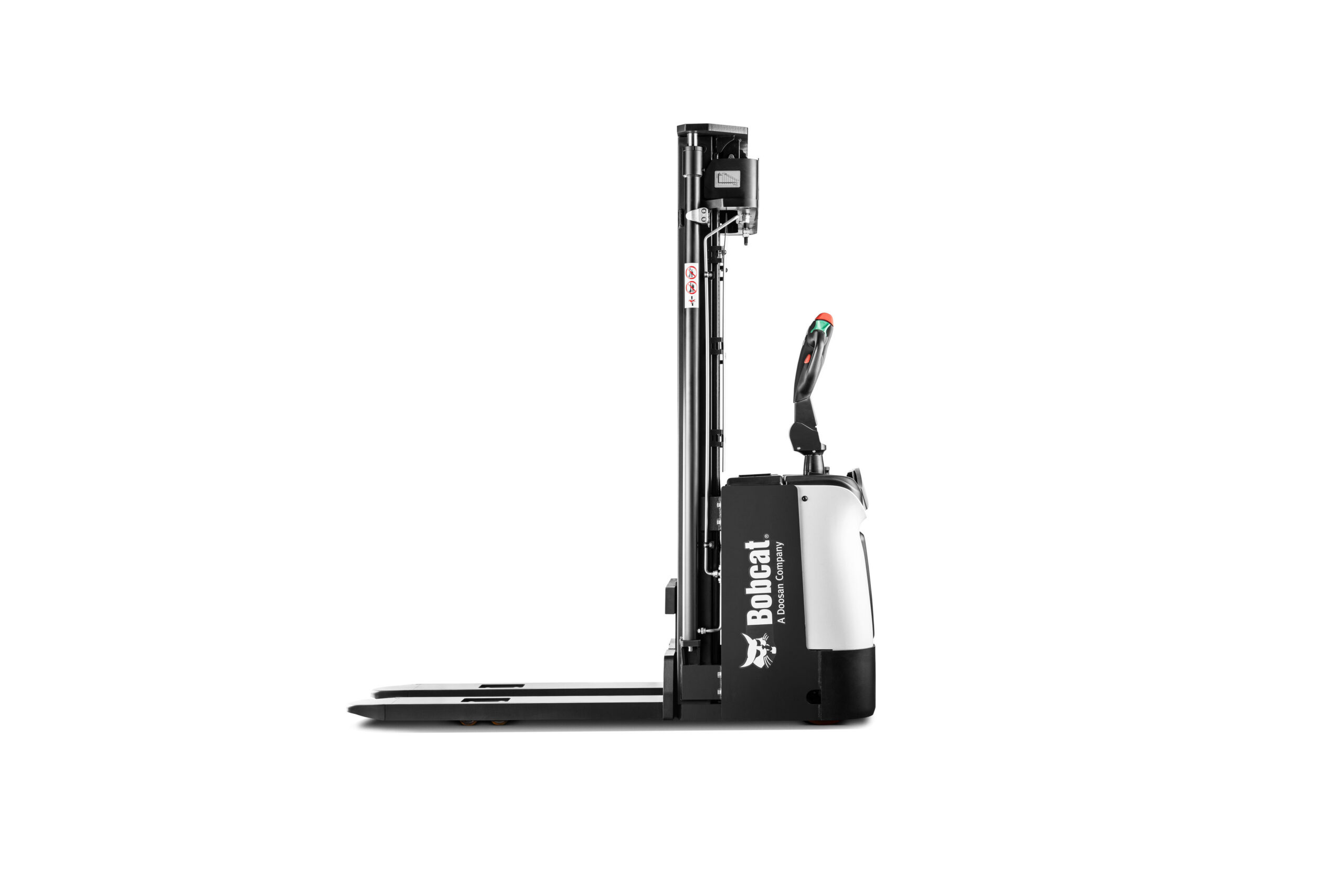

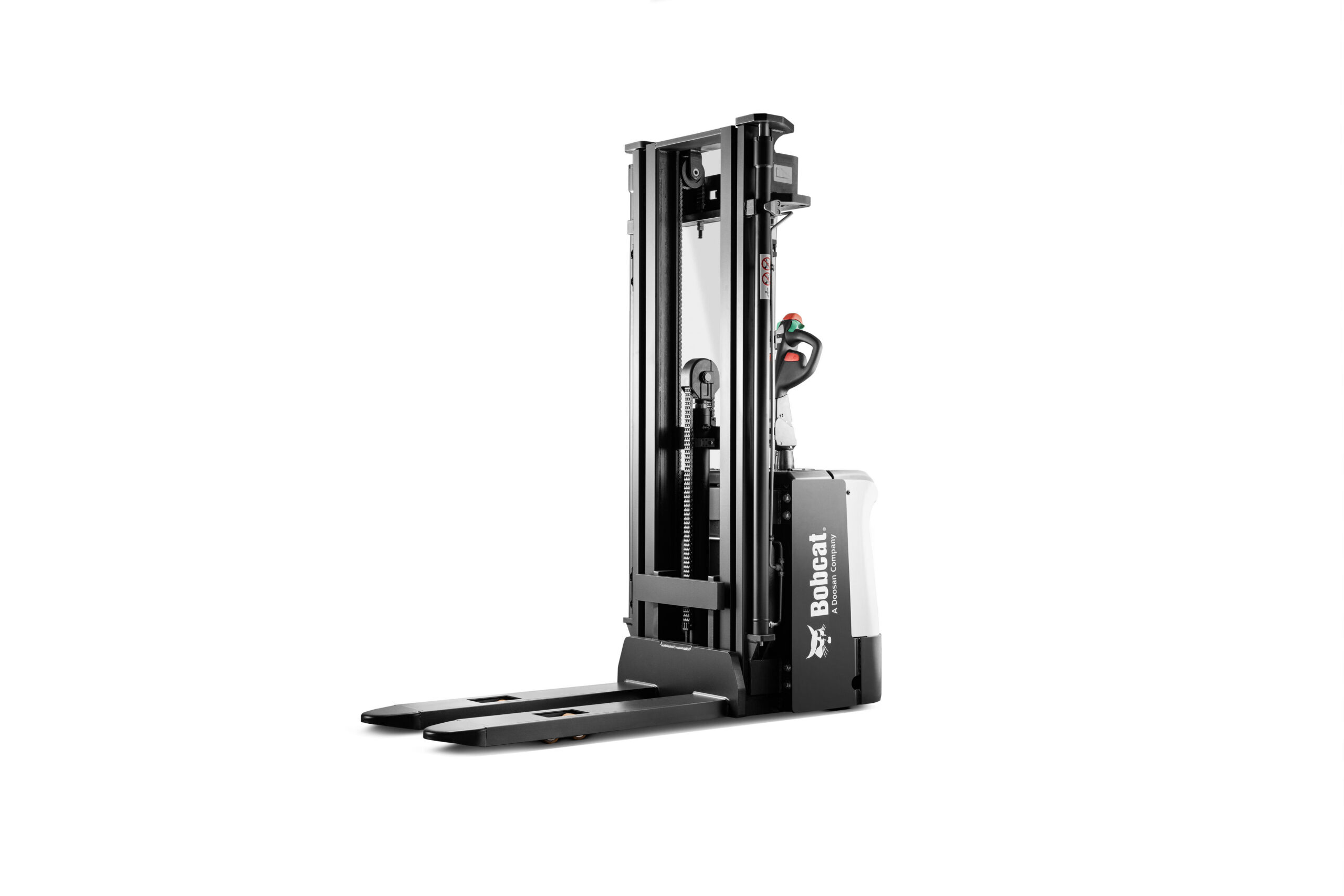

| Overview | The Bobcat BSR16N-7 is an electric stacker with a folding operator platform, rated at 1,600 kg at a 600 mm load centre and part of the BSR12/16N-7 range. It runs on a 24 V, 210–270 Ah battery and lifts pallets up to 5,410 mm. Its operator platform unfolds when needed for longer travel, with speeds of 6 km/h loaded and 7 km/h unloaded, and the 1,420 mm turning radius (platform folded) keeps it workable in racked aisles. SDEC can advise on mast height, battery and charger, provide a quotation and support the stacker with parts and service in Saudi Arabia. |
| Features | Description |
|---|---|
| Equipment Type | Electric stacker with folding operator platform |
| Rated Capacity | 1,600 kg |
| Load Centre | 600 mm |
| Battery | 24 V, 210–270 Ah |
| Max Lifting Height | 5,410 mm |
| Travel Speed (loaded / unloaded) | 6 / 7 km/h |
| Forks (s / e / l) | 60 / 180 / 1,150 mm |
| Turning Radius (Wa, platform folded) | 1,420 mm |
| Service Weight | 1,380 kg |
